JHRX series, infrared thermal imaging cameras

recommendation index：

Expert-level native analysis capabilities assist in diagnosing equipment status

Support scanning QR code to quickly identify the measured object

Features required for voice-controlled thermal imaging cameras

One-click batch infrared diagnosis

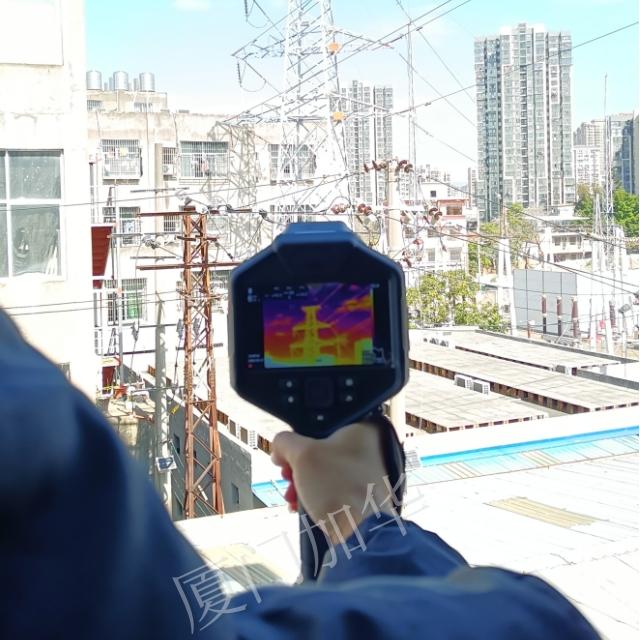

Handheld thermal imaging camera for abnormal heat detection of equipment
Applicable to a variety of live equipment and substation detection, such as transformers, voltage transformers, current transformers, isolating switches, circuit breakers, lightning arresters, capacitors, reactors, buses, wall bushings, insulators, wire clips, busbars, etc

Product Model Specifications	JHRX-100	JHRX-1000	JHRX-2000
core function
infrared resolution	160×120	384×288	640×480
super pixel	320×240	768×576	1280×960
thermal sensitivity	50mk（0.05℃）	40mk（0.04℃）	30mk（0.03℃）
Field of view	25°×19°
Optional lens	Optional: 46 ° × 35 °; 12 ° × 9 °; 7 ° × 5 °
spatial resolution	1.48mard	1.14mard	0.68mard
focal length	F15		F24.8
Minimum imaging distance	0.1m		0.25m
